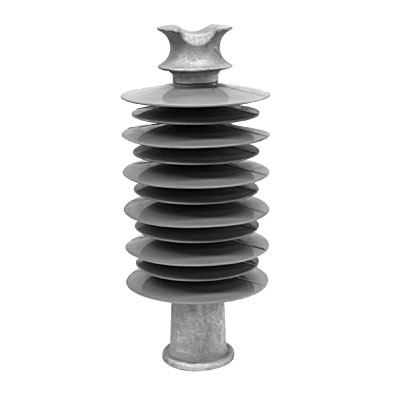

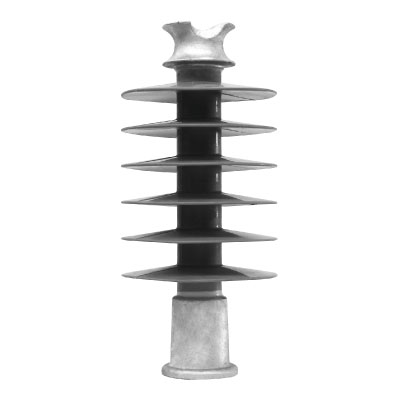

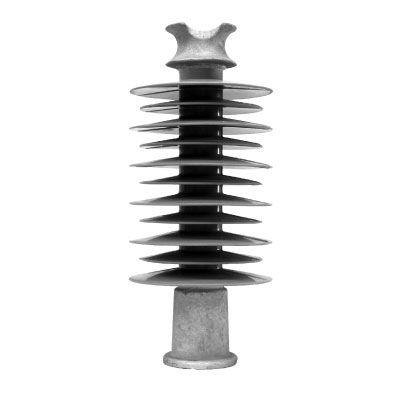

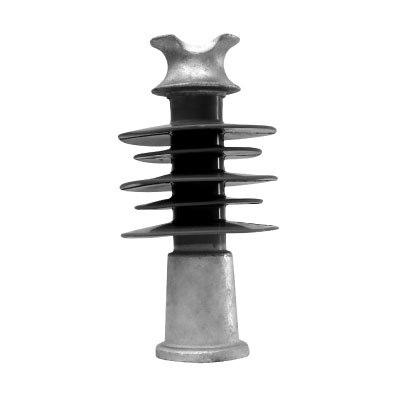

LINE POST
| Catalogue number | MUL-LP15 | MUL-LP15C |
| Nominal coltage kV | 13.8 | 13.8 |
| Max. design voltage kV | 15 | 15 |

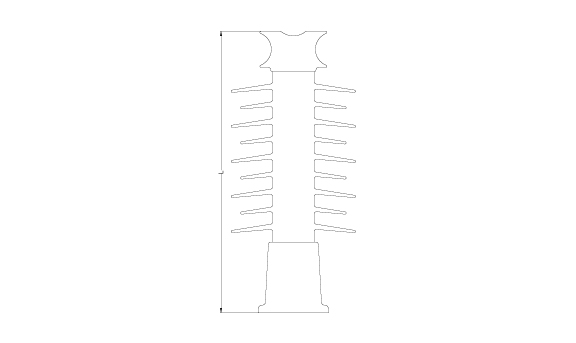

| Longht (L) mm | 276 | 276 |
| Dry arcing distance mm | 190 | 187 |
| Leakage distance mm | 395 | 500 |
| Shed diameter (A) mm | 140 | 137 |
| Shed diameter (B) mm | --- | 112 |
| Critical impulse flash kV | 118 | 159 |
| Low frequency flashhover dry kV | 82 | 85 |
| Low frequency flashhover wet kV/td> | 66 | 79 |
| Specifed cantilever load kN | 19.9 | 19.9 |
| Radio influence voltage μV | 28,8 | 40 |
| No. of sheds | 3 | 5 |
| Approx. weigth | 3.2 | 3.4 |
| Standard Pacaging | 6 | 6 |
| Catalogue number | MUL-LP27 | MUL-LP27C |
| Nominal coltage kV | 23 | 23 |
| Max. design voltage kV | 27 | 27 |
| Lenght (L) mm | 360 | 360 |
| Dry arcing distance mm | 287 | 184 |
| Leakage distance mm | 690 | 950 |
| Shed diameter (A) mm | 153 | 150 |
| Shed diameter (B) mm | --- | 128 |
| Critical impulse flash kV | 163 | 189 |
| Low frequency flashhover dry kV | 117 | 127 |
| Low frequency flashhover wet kV | 94 | 107 |
| Specifed mechanical load kN | 15.9 | 15.9 |
| Radio influence voltage μV | 6.2 | 40 |
| No. of sheds | 5 | 9 |
| Approx. weigth | 4.5 | 4.6 |
| Standard Pacaging | 6 | 6 |
| Catalogue number | MUL-LP38 | MUL-LP38C |
| Nominal coltage kV | 34.5 | 34.5 |
| Max. design voltage kV | 38 | 38 |
| Lenght (L) mm | 402 | 402 |
| Dry arcing distance mm | 355 | 355 |
| Leakage distance mm | 965 | 1350 |
| Shed diameter (A) mm | 179 | 173 |
| Shed diameter (B) mm | --- | 149 |
| Critical impulse flash kV | 221 | 225 |
| Low frequency flashhover dry kV | 137 | 134 |
| Low frequency flashhover wet kV | 114 | 131 |
| Specifed cantilever load kN | 15.1 | 15.1 |
| Radio influence voltage μV | 10.8 | 6.3 |
| No. of sheds | 6 | 11 |
| Approx. weigth | 5.2 | 5.6 |
| Standard Pacaging | 6 | 6 |
It provides full insulation between the structure and the overhead line up to 38kv, designed to hold a wide range of cable thickness. Insulators are used in distribution line supports and electrical substations. The end-fittings are made of ductile iron and hot dip galvanized or stainless steel if required, with the product is provided the insulator stud.
